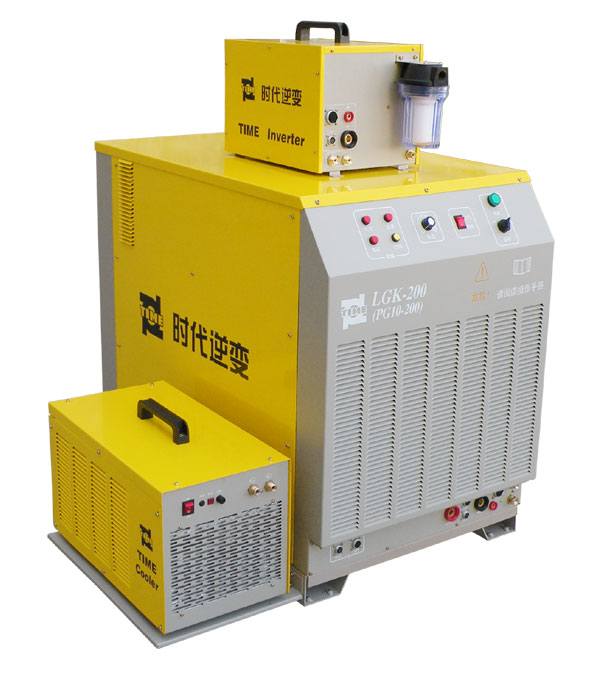

LGK-200（PG10-200/PG20-200） LGK-400（PG20-400）

Model

LGK-200

LGK-200

LGK-400

Company Type

PG10-200

PG20-200

PG20-400

input voltage

3 phase 380V±10%

50~60Hz

3 phase 380V±10%

50~60Hz

3 phase 380V±10%

50~60Hz

Rated input power(KW)

37.5

37.5

75

No-load voltage (V)

280

280

280

Current adjustment range(A)

40～200

40-200

40-400

Rated output voltage (V)

150

150

150

Rated duty cycle（40℃）

100%

100%

100%

Efficiency

85%

85%

85%

Power factor

0.93

0.93

0.93

Maximum cutting through thickness  (mm)

64

64

100

Quality cutting thickness（mm）

50

50

80

insulation grade

F

F

F

Case Protection Class

IP21

P21

P21

Cooling

Wind

 Wind

Wind

Dimension  (L×W×G)(mm)

1130×670×905

1130×670×905

（1130×670×905）×2

weight (kg)

480

480

960

Gas flow (L/min)

40～200

40～200

40～200
